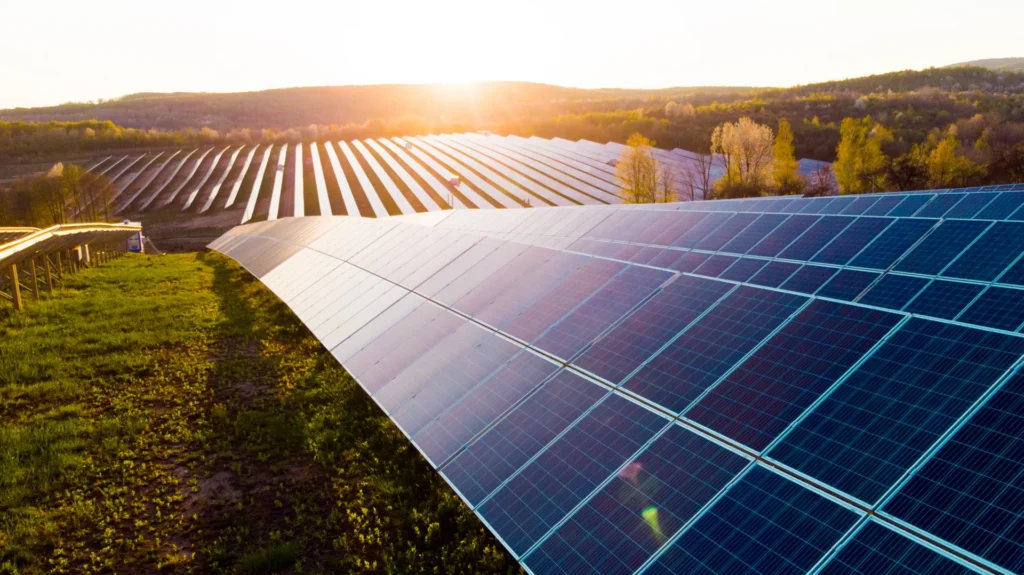

Grid-Tied Solar System
Grid-Tied Solar System, also known as a grid-connected or on-grid solar system, is a solar power setup that is connected to the utility grid. Here's a breakdown of its components, functionality, and benefits:
Components of a Grid-Tied Solar System:
Solar Panels (PV Modules): These panels are installed on rooftops or ground-mounted structures to capture sunlight and convert it into electricity using photovoltaic cells.
Inverter: The inverter is a crucial component that converts the direct current (DC) electricity generated by the solar panels into alternating current (AC) electricity, which is used to power household or commercial appliances. Grid-tied inverters synchronize the solar system's output with the utility grid.
Mounting Structure: Solar panels are mounted securely on rooftops or ground-mounted structures to optimize sunlight exposure and ensure stability.
Grid Connection: The grid-tied solar system is connected to the public electricity grid through a metering system. This connection allows surplus electricity generated by the solar panels to be exported to the grid, and any shortfall in electricity demand is supplemented by the grid.
How Grid-Tied Solar Systems Work:
Solar Power Generation: During daylight hours, solar panels generate electricity when exposed to sunlight. The generated DC electricity is sent to the inverter for conversion into AC electricity.
Grid Interaction: The AC electricity produced by the inverter is used to power electrical loads within the premises. If the solar system generates more electricity than is currently being consumed, the excess electricity is fed back into the grid through the meter.
Net Metering: A bi-directional meter measures both the electricity imported from the grid and the surplus electricity exported to the grid. Through net metering, the consumer receives credits for the excess electricity exported, which can offset electricity bills.
Grid Stability: Grid-tied solar systems do not require battery storage, as the grid serves as a virtual storage system. During periods of low sunlight or high electricity demand, electricity can be drawn from the grid as needed.
Benefits of Grid-Tied Solar Systems:
Cost-Effectiveness: Grid-tied solar systems typically have lower upfront costs compared to off- grid systems, as they do not require expensive battery storage.
Financial Incentives: Many governments offer financial incentives, such as feed-in tariffs or tax credits, to encourage the adoption of grid-tied solar systems, making them more financially attractive.
Grid Stability: By feeding surplus electricity back into the grid, grid-tied solar systems contribute to grid stability and reliability.
Reduced Electricity Bills: Grid-tied solar systems can significantly reduce electricity bills by offsetting or even eliminating the need to purchase electricity from the grid.
Environmental Benefits: Grid-tied solar systems help reduce greenhouse gas emissions by generating clean, renewable energy from sunlight.
Integration into Existing Systems: Wind energy can be integrated into existing electrical grids through grid-connected wind farms or distributed wind turbines. Wind farms can be located onshore or offshore and connected to the grid to supply electricity to homes, businesses, and industries. Distributed wind turbines can be installed on-site at residential or commercial properties to offset electricity consumption and reduce utility bills.

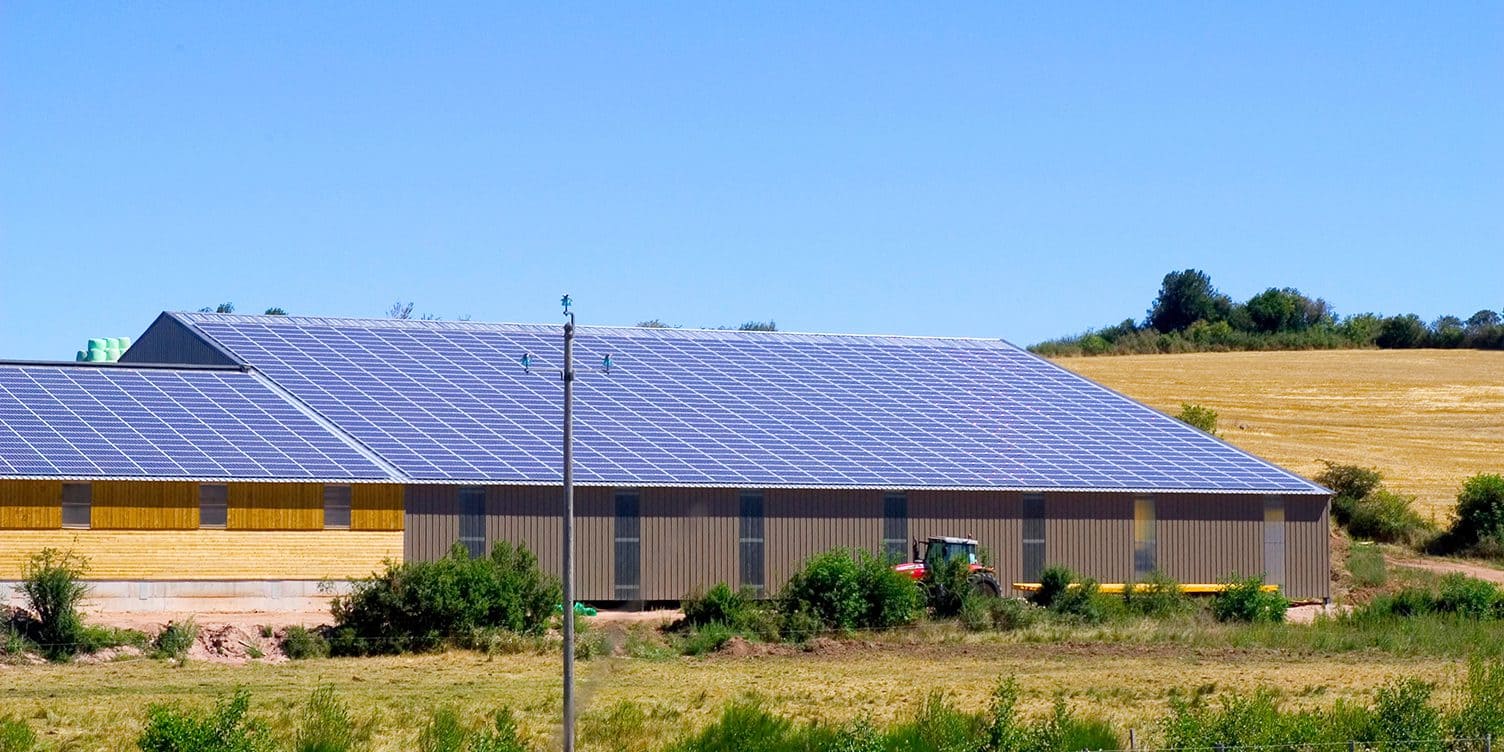

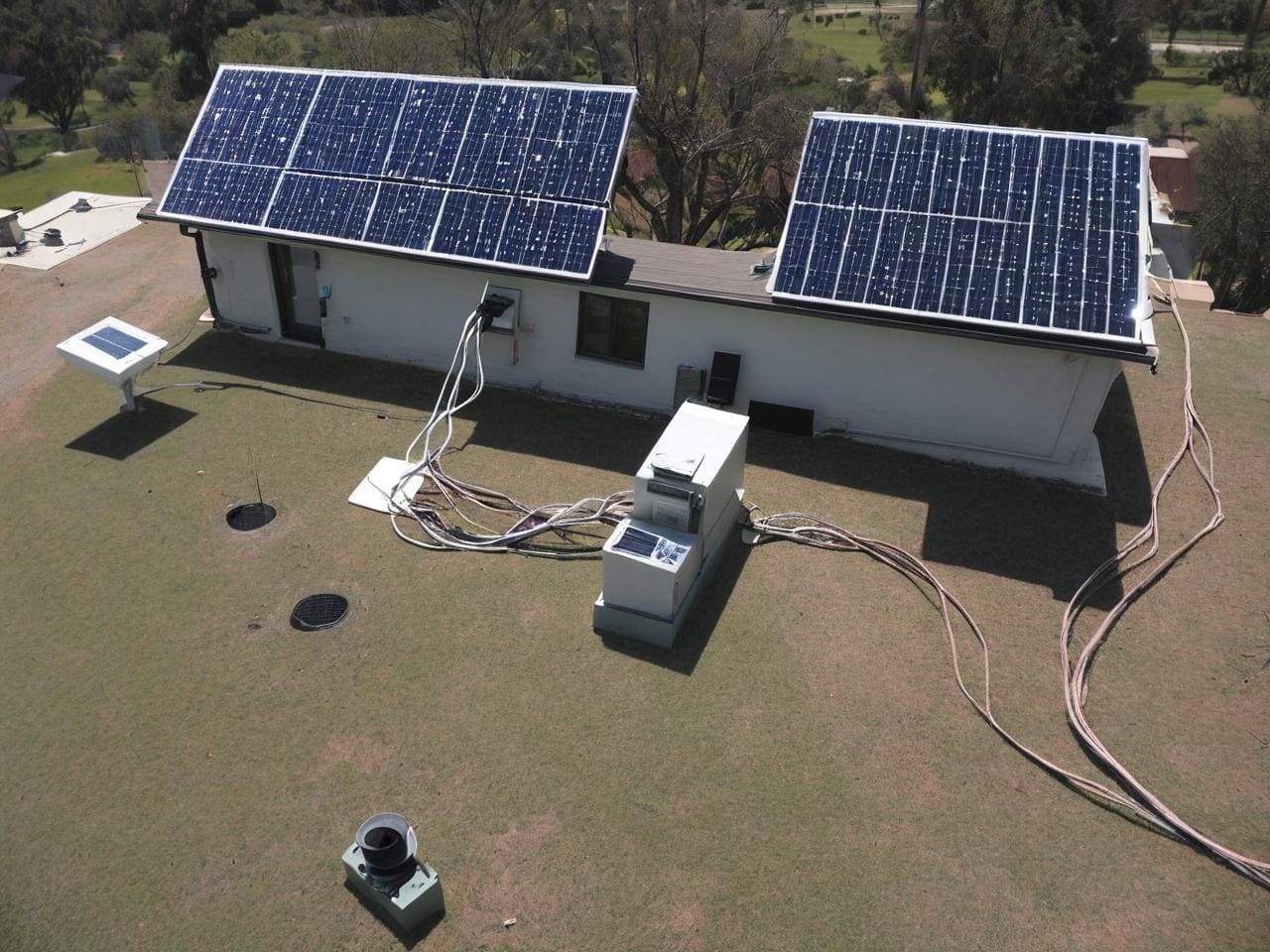

Hybrid Solar System
Hybrid Solar System combines the benefits of grid-tied and off-grid solar systems by incorporating both grid connection and battery storage capabilities. Here's a breakdown of its components, functionality, and benefits:
Components of a Hybrid Solar System:
Solar Panels (PV Modules): Similar to grid-tied and off-grid systems, hybrid systems use solar panels to capture sunlight and convert it into electricity using photovoltaic cells.
Inverter: The inverter plays a crucial role in hybrid systems by converting the DC electricity generated by the solar panels into AC electricity for use in powering electrical loads. Additionally, hybrid inverters have the capability to manage both grid interaction and battery charging/discharging.
Battery Storage: Unlike grid-tied systems, hybrid systems incorporate battery storage to store excess solar energy generated during the day for use during periods of low sunlight or high electricity demand.
Grid Connection: Hybrid systems remain connected to the utility grid, allowing them to import electricity from the grid when solar generation is insufficient to meet demand and export surplus electricity back to the grid when generation exceeds demand.
How Hybrid Solar Systems Work:
Solar Power Generation: During daylight hours, solar panels generate electricity when exposed to sunlight. The generated DC electricity is sent to the hybrid inverter for conversion into AC electricity.
Grid Interaction: If solar generation is insufficient to meet demand, electricity can be imported from the grid to supplement power requirements. Conversely, surplus electricity generated by the solar panels can be exported to the grid.
Battery Storage: Excess solar energy generated during the day is stored in the battery storage system for later use. The stored energy can be utilized during periods of low sunlight or at night when solar generation is not available.
Grid Stability: Hybrid systems offer grid stability by utilizing battery storage to manage fluctuations in solar generation and electricity demand. This reduces reliance on the grid during peak demand periods and helps stabilize the grid.
Benefits of Hybrid Solar Systems:
Energy Independence: Hybrid systems provide a degree of energy independence by allowing homeowners to generate and store their own electricity while remaining connected to the grid for backup support.
Increased Reliability: By incorporating battery storage, hybrid systems offer increased reliability and resilience against power outages or grid failures, ensuring continuous power supply even during emergencies.
Optimized Self-Consumption: Hybrid systems enable homeowners to maximize self- consumption of solar energy by storing excess energy for later use, reducing reliance on grid- supplied electricity and lowering electricity bills.
Environmental Benefits: Like other solar systems, hybrid systems help reduce greenhouse gas emissions by generating clean, renewable energy from sunlight, contributing to environmental sustainability.
Overall, hybrid solar systems offer a flexible and versatile solution for homeowners seeking to optimize their solar energy usage, increase energy independence, and enhance grid stability.

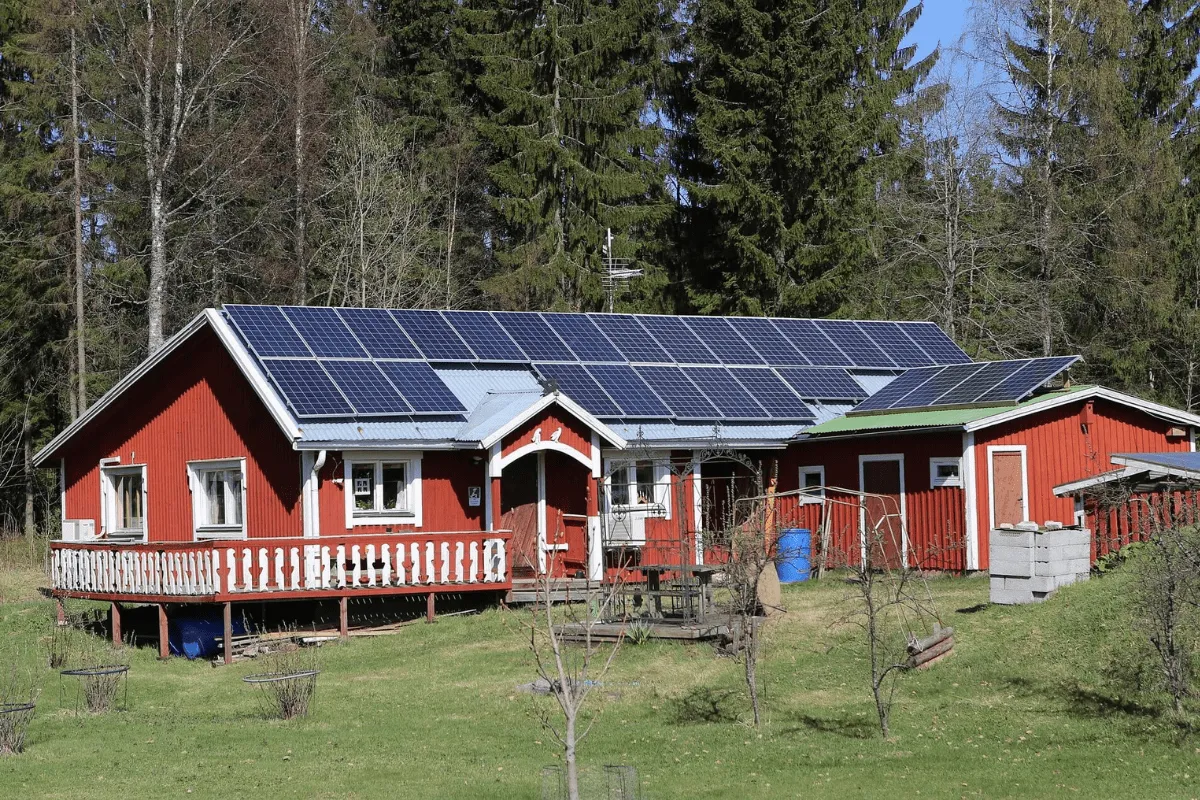

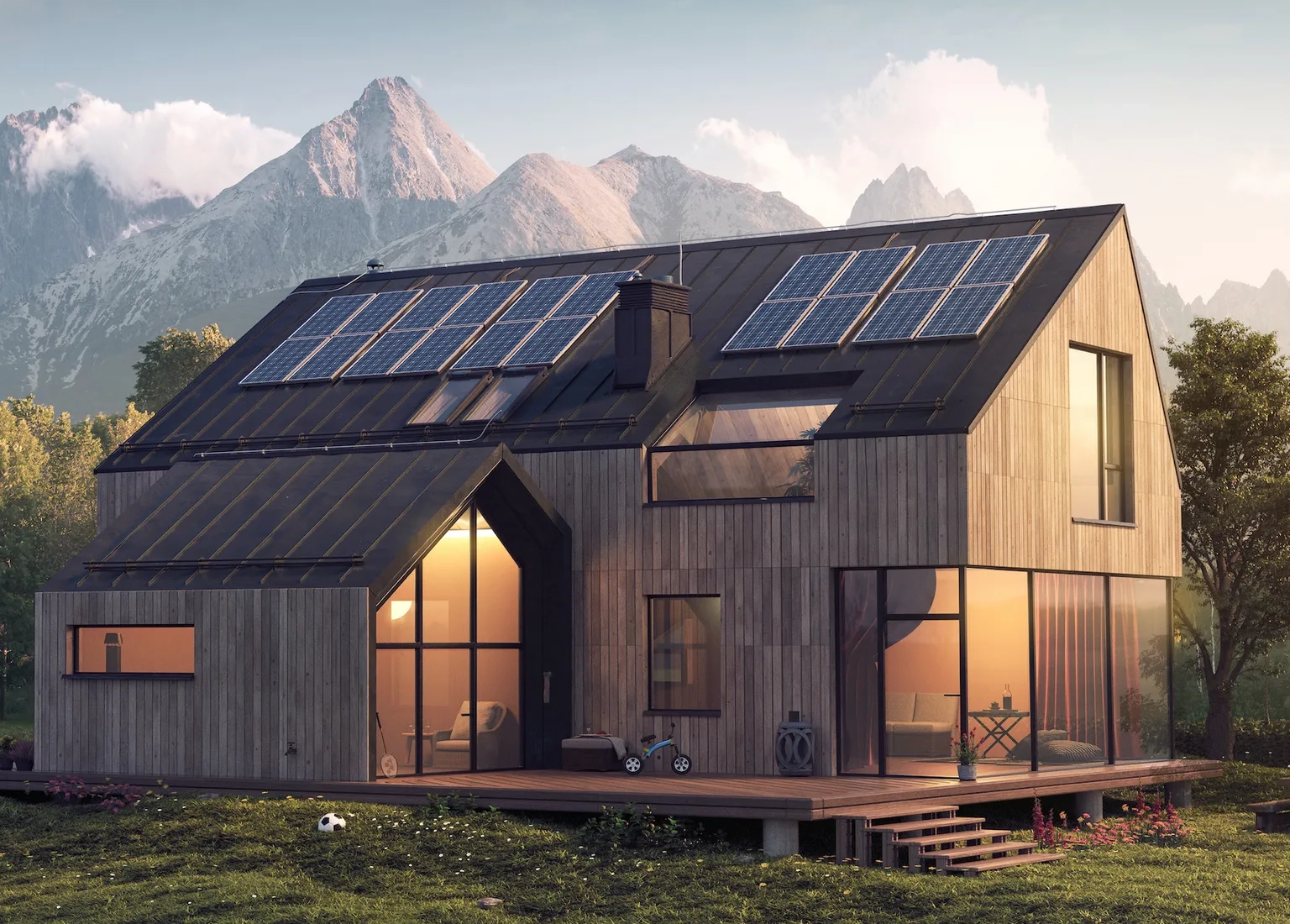

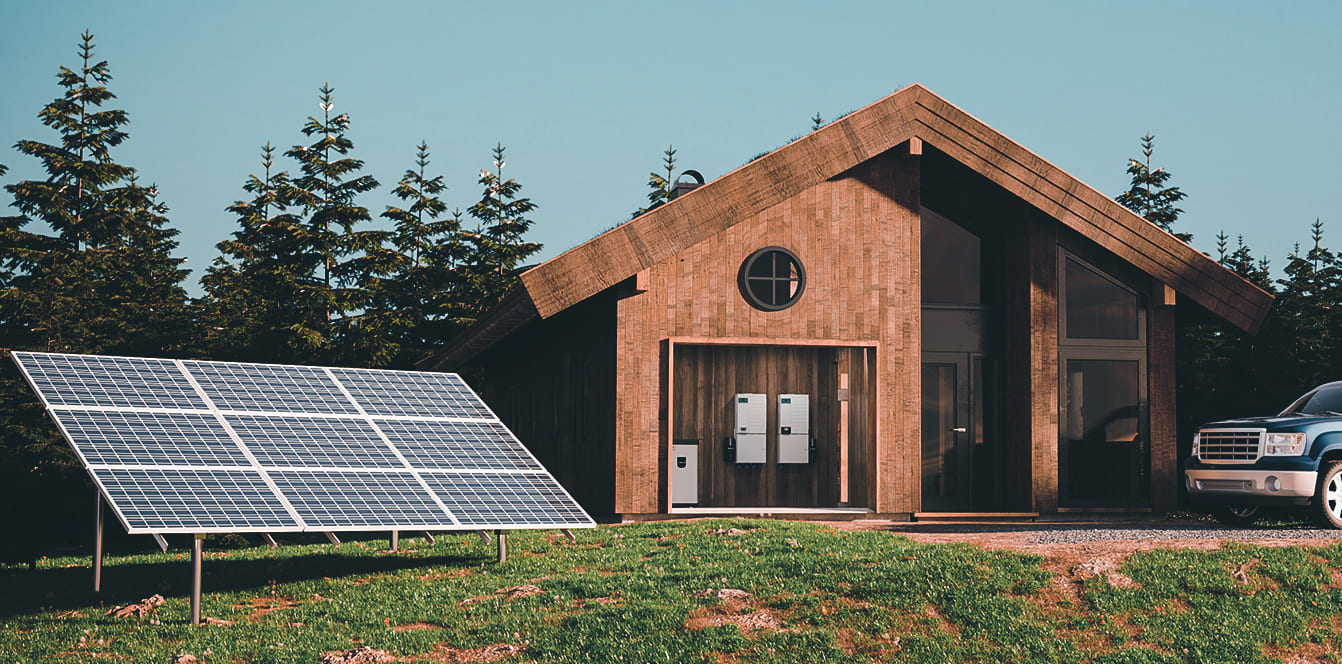

Off-Grid Solar System
Off-Grid Solar System, also known as a standalone solar system, operates independently of the utility grid and typically includes solar panels, batteries for energy storage, charge controllers, and inverters. Here's a breakdown of its components, functionality, and benefits:
Components of an Off-Grid Solar System:
Solar Panels (PV Modules): Solar panels are the primary component of an off-grid solar system. They capture sunlight and convert it into electricity using photovoltaic cells.
Charge Controller: The charge controller regulates the flow of electricity from the solar panels to the batteries. It prevents overcharging of the batteries during periods of high solar generation and ensures efficient charging.
Battery Bank: Off-grid systems incorporate battery storage to store excess solar energy generated during the day for use during periods of low sunlight or at night when solar generation is not available.
Inverter: The inverter converts the DC electricity stored in the batteries into AC electricity, which is used to power household or commercial appliances.
Backup Generator (Optional): Some off-grid systems may include a backup generator, such as a diesel or propane generator, to provide additional power during extended periods of low sunlight or high electricity demand.
How Off-Grid Solar Systems Work:
Solar Power Generation: During daylight hours, solar panels generate electricity when exposed to sunlight. The generated DC electricity is sent to the charge controller, which regulates the flow of electricity to the battery bank.
Battery Storage: Excess solar energy generated during the day is stored in the battery bank for later use. The stored energy can be utilized during periods of low sunlight or at night when solar generation is not available.
Inverter Conversion: When electricity is needed, the inverter converts the DC electricity stored in the batteries into AC electricity, which can be used to power electrical loads within the premises.
Backup Generator (Optional): In the event of prolonged periods of low sunlight or high electricity demand exceeding the capacity of the solar system, a backup generator can be used to supplement power requirements.
Benefits of Off-Grid Solar Systems:
Energy Independence: Off-grid solar systems provide complete energy independence by allowing homeowners to generate and store their own electricity without relying on the utility grid.
Remote Power Generation: Off-grid systems are ideal for remote locations where access to the utility grid may be impractical or cost-prohibitive, such as cabins, RVs, or off-grid homes.
Resilience: Off-grid systems offer resilience against power outages or grid failures, ensuring continuous power supply even during emergencies or natural disasters.
Environmental Benefits: Off-grid solar systems help reduce reliance on fossil fuels and greenhouse gas emissions by generating clean, renewable energy from sunlight, contributing to environmental sustainability.
Overall, off-grid solar systems offer a self-sufficient and environmentally friendly solution for homeowners seeking to live off the grid or in remote locations without access to the utility grid.
Microgrid Solar System
Microgrid Solar System is a localized power grid that can operate independently or in conjunction with the main grid, comprising distributed energy resources such as solar panels, wind turbines, batteries, and other generation sources. Here's an overview of its components, functionality, and benefits:
Components of a Microgrid Solar System:
Energy Storage (Batteries): Energy storage systems, typically consisting of batteries, store excess energy generated by solar panels for later use during periods of low sunlight or high electricity demand.
Inverters: Inverters convert the DC electricity generated by solar panels and stored in batteries into AC electricity for use in powering electrical loads within the microgrid.
Smart Controllers and Switchgear: Smart controllers and switchgear manage the flow of electricity within the microgrid, optimizing energy generation, storage, and distribution based on demand and grid conditions.
Backup Generation (Optional): Some microgrids may include backup generation sources, such as diesel generators or fuel cells, to provide additional power during emergencies or when renewable energy sources are insufficient.
Grid Connection (Optional): Microgrids can operate in islanded mode, disconnected from the main grid, or in grid-connected mode, where they interact with the main grid to import or export electricity as needed.
How Microgrid Solar Systems Work:
Solar Power Generation: Solar panels generate electricity when exposed to sunlight. The generated DC electricity is converted into AC electricity using inverters for use within the microgrid.
Energy Storage: Excess solar energy generated during the day is stored in batteries for later use. Energy storage systems help balance supply and demand within the microgrid and provide backup power during periods of low solar generation.
Load Management: Smart controllers and switchgear manage the distribution of electricity within the microgrid, prioritizing renewable energy sources and optimizing energy usage based on demand and grid conditions.
Grid Interaction: Microgrids can operate independently (islanded mode) or interact with the main grid (grid-connected mode). In grid-connected mode, excess energy generated by the microgrid can be exported to the main grid, while electricity can be imported from the grid during periods of high demand or low renewable energy generation.
Benefits of Microgrid Solar Systems:
Resilience: Microgrid solar systems offer resilience against power outages or grid failures by providing localized power generation and storage capabilities, ensuring continuous electricity supply even during emergencies or natural disasters.
Energy Independence: Microgrids promote energy independence by allowing communities, businesses, or institutions to generate their own electricity using renewable energy sources, reducing reliance on the main grid and fossil fuels.
Grid Support: Microgrids can support the main grid by providing additional capacity, balancing supply and demand, and enhancing grid stability through distributed energy resources and smart grid technologies.
Environmental Benefits: Microgrid solar systems help reduce greenhouse gas emissions and environmental impact by generating clean, renewable energy from sunlight and minimizing reliance on fossil fuels.
Overall, microgrid solar systems offer a decentralized and sustainable approach to power generation, distribution, and management, providing resilience, energy independence, and environmental benefits to communities, businesses, and institutions.
Solar Mounting Systems
Solar Mounting Systems are structures designed to securely install solar panels onto various surfaces, such as rooftops, ground, or poles. These systems play a crucial role in maximizing solar panel performance, ensuring durability, and facilitating ease of installation. Here's a description of different types of solar mounting systems:
Roof Mounting Systems:
Pitched Roof Mounting: Designed for sloped roofs, these systems typically use rails, brackets, and clamps to secure solar panels at an optimal angle for sunlight exposure.
Flat Roof Mounting: Suitable for flat or low-slope roofs, these systems use ballasted or penetrating mounts to secure solar panels without damaging the roof membrane.
Tile Roof Mounting: Specifically designed for tile roofs, these systems include hooks or brackets that attach to the roof structure beneath the tiles.
Metal Roof Mounting: Tailored for metal roofs, these systems utilize clamps or brackets that attach directly to the metal roof seams or ribs.
Ground Mounting Systems:
Fixed Tilt Ground Mounts: These systems consist of steel or aluminum frames installed on the ground at a fixed tilt angle to optimize solar panel orientation.
Single-Axis Tracking Systems: Utilize a single-axis tracking mechanism to tilt solar panels throughout the day, following the sun's path for increased energy production.
Dual-Axis Tracking Systems: Incorporate both horizontal and vertical tracking to continuously adjust solar panel orientation for maximum sunlight exposure.
Pole Mounting Systems:
Top-of-Pole Mounts: Secure solar panels to the top of poles using pole mounts or brackets, allowing for adjustable tilt angles and easy installation in remote locations.
Side-of-Pole Mounts: Attach solar panels to the side of poles using adjustable brackets, suitable for applications where space is limited or aesthetics are a concern.
Key Features and Considerations:
Material: Mounting systems are typically constructed from corrosion-resistant materials such as aluminum, stainless steel, or galvanized steel for durability and longevity.
Adjustability: Some mounting systems offer adjustable tilt angles or tracking capabilities to optimize solar panel orientation for maximum energy production. electricity demand.
Ease of Installation: Modular designs and pre-assembled components simplify installation and reduce labor costs, making it easier for installers to complete projects efficiently.
Compatibility: Mounting systems should be compatible with the specific type and size of solar panels being installed, ensuring a secure and proper fit.
Code Compliance: Mounting systems should comply with local building codes and regulations, including wind and snow load requirements, to ensure structural integrity and safety.
Overall, solar mounting systems are essential components of solar PV installations, providing structural support, optimizing solar panel performance, and ensuring long-term reliability and efficiency. Choosing the right mounting system depends on factors such as roof type, site conditions, and project requirements.
